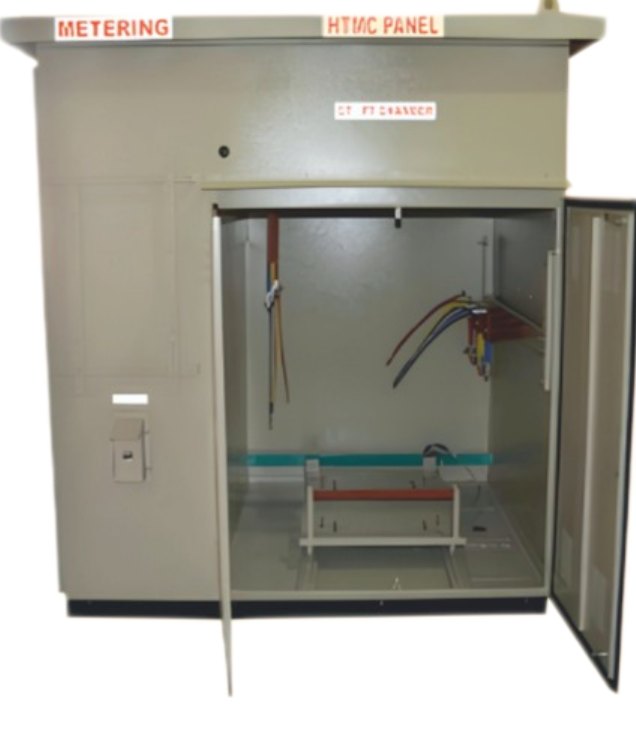

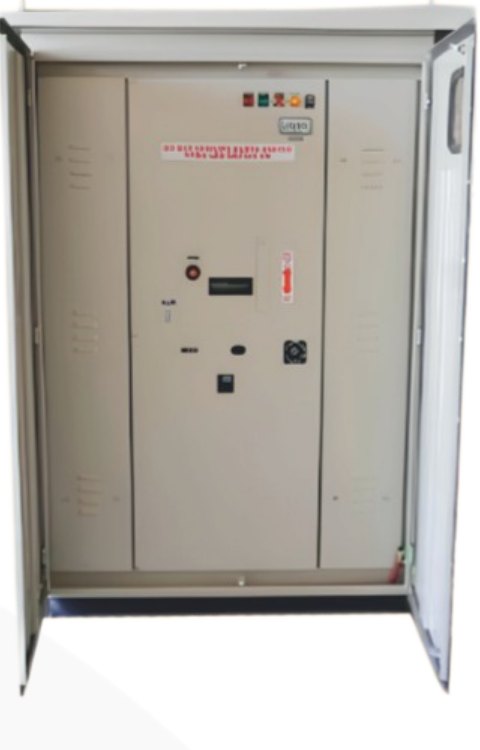

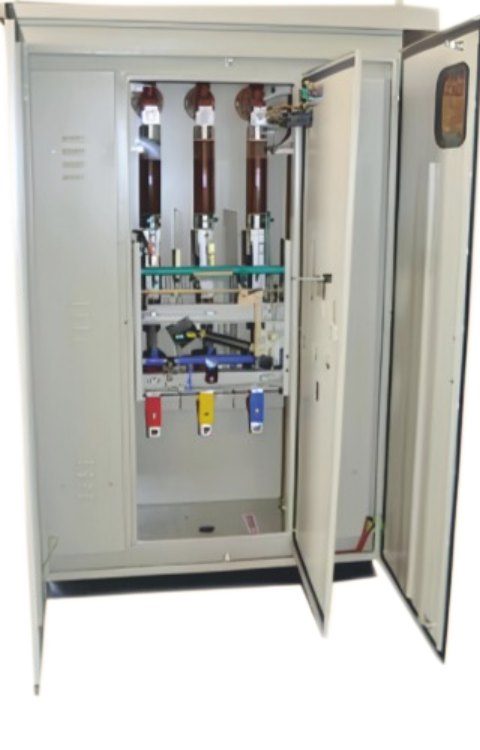

12 KV LBS Metering Cubicle (HTMC) Panel

High-voltage load break switching and accurate energy metering in one manual, 3-phase cubicle.

A 12 KV LBS Metering Cubicle (HTMC) Panel is a high-voltage (12KV), manual, 3-phase electrical distribution panel used for metering energy consumption and load breaking in industrial applications, typically installed between the incoming supply and a transformer. Constructed from durable mild steel with a powder coating, it features a robust design and is built to handle current ratings of 630A or 1250A, meeting standards for reliable power distribution. Load Break Switch 630amp 21KA IS 3427/IEC 62271; HT HRC fuses of suitable rating; insulation level 12/28/75 KVP; rated short-time withstand current 21kA/3 sec; rated making capacity 52.5KA; auxiliary switch, fuse trip & shunt trip coil built in; voltage detecting insulator & monitor built in; CT/PT compartment with trolley provision; electronic trivector meter fitting provision; bottom cable entry; robust construction; manual operation.

Available Features

• 12 KV voltage rating
• Load break switch (LBS)
• Metering cubicle
• HTMC (High Tension Metering Cubicle)
• Robust construction
• Manual operation
• Current & breaking capacity
• Applications: industrial & large buildings
