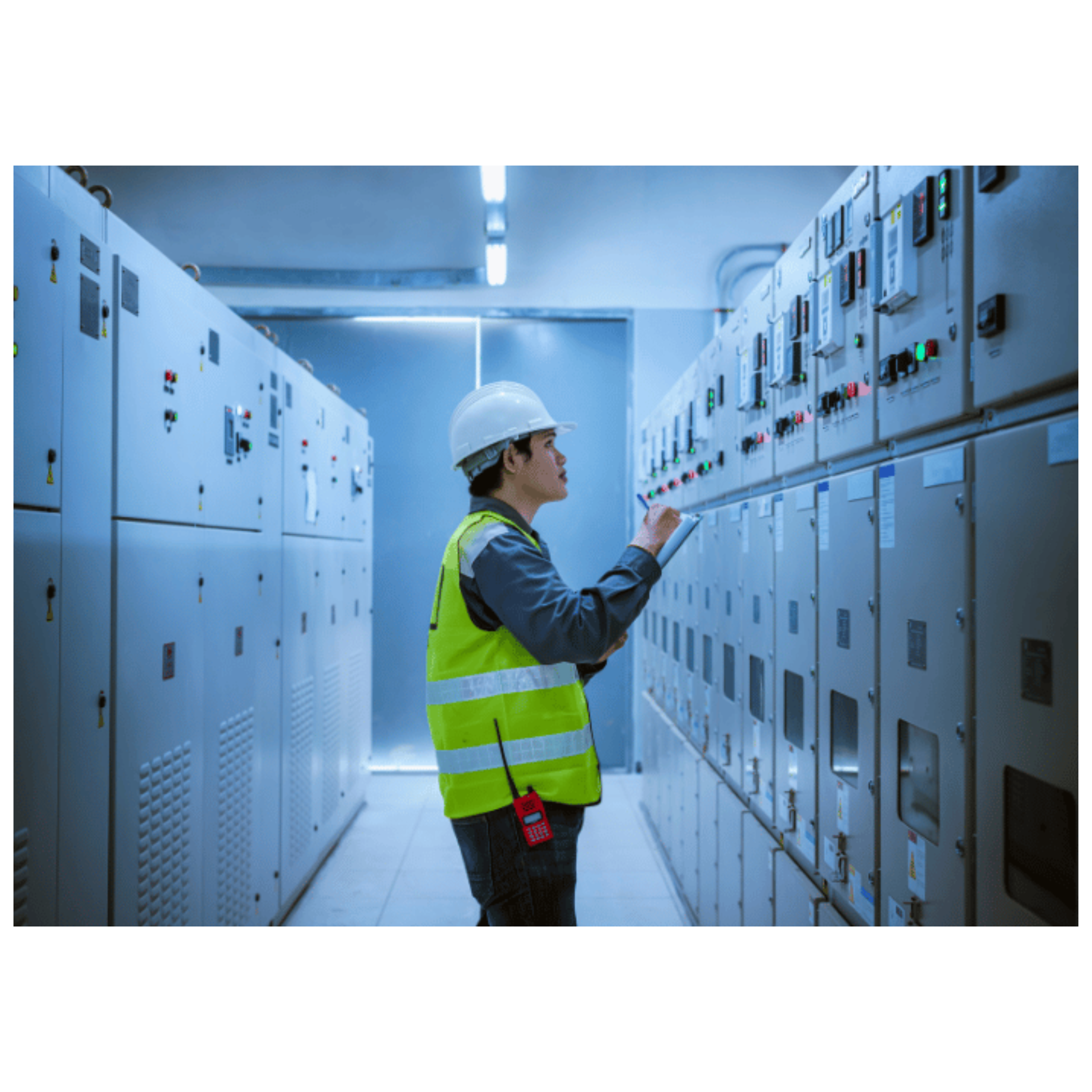

LV/MDB Panel

Main low-voltage distribution board — the backbone for sub-distribution across a facility.

An LV MDB (Low Voltage Main Distribution Board) is the central electrical panel in a facility that receives power (under 1000V) and safely distributes it to various circuits, housing main breakers, fuses, and earth leakage protection for overload/fault management — serving as the backbone for sub-distribution to different zones and equipment. Includes main circuit breakers (ACBs/MCCBs) and fuses to protect against short circuits, overloads and earth faults; centralizes control, monitoring (ammeters, voltmeters) and switching for the entire low-voltage system; metal-enclosed, compartmentalized construction with copper or aluminium busbars. Typical specifications: rated around 415V AC (or 380V/480V), current from 100A to 6300A or more, 50Hz or 60Hz, complying with IEC 61439.

Available Features

• Rated Operational Voltage up to 690 V AC
• Rated current ranging from 400 amps to 6300 amps
• Separation Form 2, 3 and 4 type 7
• Ingress protection standard up to IP65 (IP54 on request)
• Wall mounting or floor standing
• Top or bottom cable entry, with front or rear cabling access
• Engineered to accept Bus Bar Flanges for Bus Riser Connections
• A full range of instruments and metering to meet customer requirements
• Fuse switch disconnectors, MCCB's and ACB's as required
• Fixed, plug-in, or drawout devices
• Automatic changeover systems (relay or PLC controlled)
• Automatic load shedding
• Special control systems to customers' requirements
